A Deep Dive into Sequencing Technologies

Estimated Reading Time: 7 minutes

TL;DR

In our last issue, we provided a brief introduction to genomic sequencing but did not spend much time on the actual technology. In today’s issue, we take a deeper look at the science underlying modern sequencing. We start first with a few announcements below. Our next issue will be released in roughly 2 weeks.

Differentiable Physics: A Position Piece

We’ve been hard at work on a number of internal projects here at Deep Forest Sciences and I’m excited to finally be able to share one of them publicly. We’ve just released our new perspective, Differentiable Physics: A Position Piece, written in partnership with Venkat Viswanathan and Dilip Krishnamurthy at CMU, out onto Arxiv, the scientific preprint server.

Read our piece at https://arxiv.org/abs/2109.07573.

We believe differentiable physics, the use of differentiable programming for physical systems, is a powerful new tool for understanding physical systems, one which will have broad applicability in both scientific and industrial domains. We also emphasize the new role of “scientific foundation models,” broadly relevant scientific algorithms trained on large datasets.

Get in touch if you’d like to partner with us to apply differentiable physics or scientific foundation models to hard real-world problems! (bharath@deepforestsci.com)

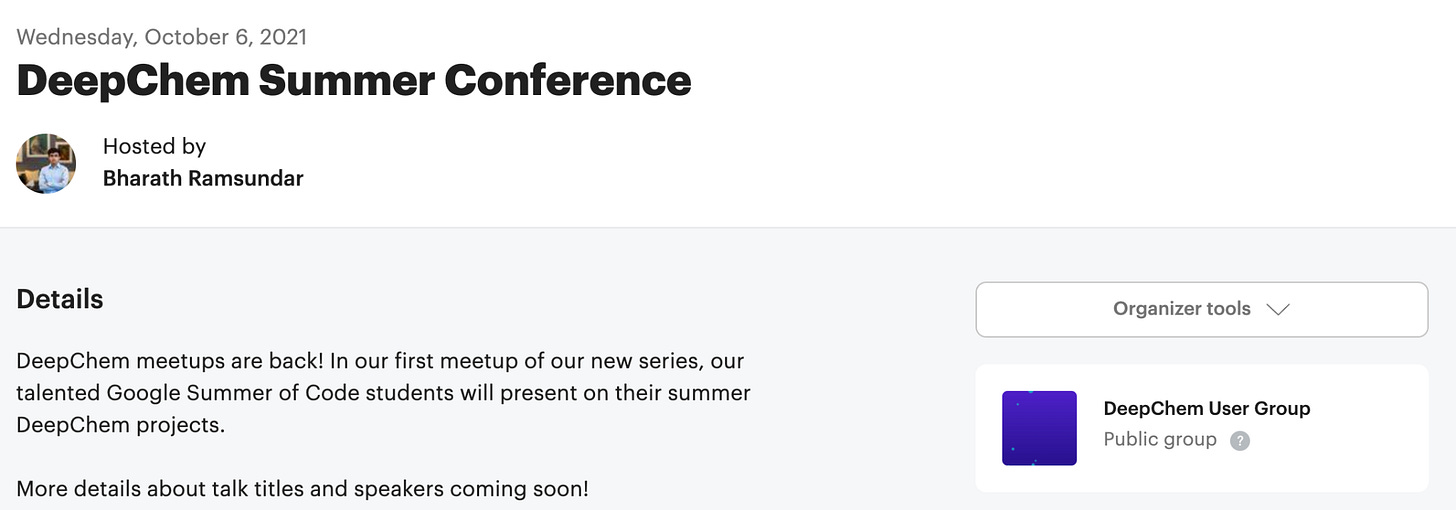

DeepChem’s First Online User Group Meeting

DeepChem is the core open source technology we develop at Deep Forest Sciences. If you’re interested to learn more about DeepChem, please attend our first online user group meeting. DeepChem’s Google Summer of Code interns will present on their work for the summer, adding support for partial differential equations, small molecule retrosynthesis, protein language modeling, and improved molecular machine learning to DeepChem.

Sign up at https://www.meetup.com/DeepChem-User-Group/events/280694218/!

Polymerase Chain Reaction

The Polymerase Chain Reaction (PCR) is one of the most foundational genomic technologies. It allows for exponential amplification of genomic sequences as shown in the figure below. Many sequencing technologies use PCR to amplify small amounts of DNA for detection.

A diagrammatic representation of the polymerase chain reaction (PCR) which repeatedly heats and cools DNA to first denature it into two strands of DNA,  and then duplicates the original strand using the DNA polymerase enzyme. At the end of n rounds of amplification, the original strand has been duplicated to 2^n strands (source).

Thermal cycling (repeatedly heating and cooling reactants) enables PCR by favoring different temperature dependent reactions (DNA melting vs enzymatic DNA replication) at different temperatures. At the first step, DNA is heated until it denatures (that is, separates into two separate strands of single-stranded DNA). The DNA is then cooled, and the two single stranded DNA strands are used as templates by the DNA polymerase enzyme to assemble two strands of double stranded DNA. Note that at the end of this process, the original DNA strand has been doubled! By repeating this process, the original DNA strand can be exponentially amplified.

PCR is a fascinating procedure since it exploits the discrete combinatorial structure of DNA. There exists no natural or synthetic procedure to duplicate an arbitrary small molecule for example. I’d characterize PCR as a type of “physical algorithm;” that is, an algorithmic procedure that operates on a real physical substrate. The field of DNA computing has explored the use of DNA as a framework for more general purpose computing. At present, the challenge is that while certain special-purpose algorithms can be solved very effectively on a DNA-based computer, there does not yet exist a procedure to solve general computing problems in programmatic fashion on a DNA substrate. DNA storage might prove to be a breakout use for DNA-based technologies though since it enables compact storage of very large datasets.

Sanger Sequencing

Sanger sequencing exploits PCR to sequence a DNA strand. A variant of PCR is executed at which duplication of the original strand cuts off at a random prefix of the original strand. That is, if the original strand was N nucleotides long, the duplication procedure will create duplicates of the length 1, 2, 3, …, N prefixes of the original DNA sequence. These prefixes are capped with dideoxynucleotides, ddNTPs, that terminate the action of DNA polymerase. Gel electrophoresis is used to separate these different prefixes by size. The sequence can be read directly off the gel manually, or alternatively by laser excitation/detection for rapid sequencing. A scaled-up form of Sanger sequencing was used to sequence the first human genome in 2001.

A diagrammatic representation of Sanger sequencing. A modified form of PCR is used to amplify all prefixes of a given sequence with special suffixes. These prefixes are then separated by size using Gel electrophoresis. A laser is used to read off the suffixes and recover the original sequence (source).

Nanopore Sequencing

Nanopore sequencing bypasses the need for PCR amplification of a molecule by driving single stranded DNA through a protein nanopore embedded in a thin membrane (see figure below). Nanopore sequencing holds out the powerful promise of being able to do “long-reads” which don’t require fragmentation of the DNA molecule into multiple short segments. These technologies are still early, but have been greatly matured by the hard work of Oxford Nanopore.

A crystal structure of alpha-hemolysin, a porin transmembrane protein, used in some nanopore sequencers (source).

A diagrammatic representation of the nanopore sequencing process. A double stranded DNA sequence is separated into two single strands, one of which is fed through a transmembrane protein. The identity of each nucleotide is red by measuring the conductivity as the nucleotide passes through the pore (source).

Other Sequencing Technologies

A remarkable array of different technologies have been proposed for use in sequencing and we’ve only covered the very basics. Some prominent methods include microfluidics-based sequencing, semiconductor sequencing, mass spectrometry sequencing, and microscopy based sequencing.
