An Introduction to Fusion

Estimated Reading Time: 8 minutes

TL;DR

Fusion holds out the hope of limitless energy but has been limited by the tremendous challenge of sustaining fusion reactions. In today’s issue, we review some of the leading technical approaches to fusion and discuss some computational strategies that could help accelerate the advent of practical fusion reactors.

A Brief Overview of the Science of Fusion

Nuclear fusion occurs when simpler nuclei combine to form a more complex nuclei. The diagram below models the combination of deuterium and tritium to form Helium.

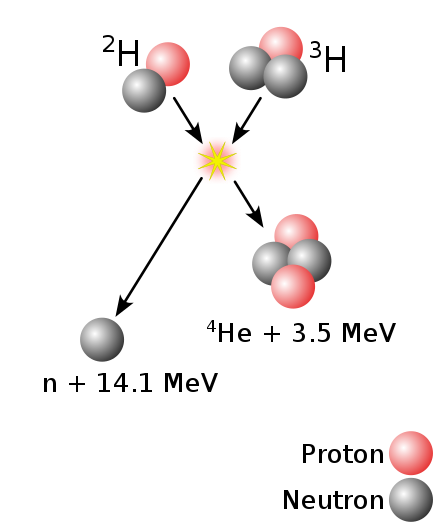

The fusion of deuterium with tritium to create Helium-4 and a free neutron. Note that the deuterium and hydrogen atoms must be travelling at high speeds to overcome nuclear forces (source).

Nuclear fusion can occur since larger nuclei are more energetically stable (see diagram below) than smaller nuclei up to a point. As a result, there is a net energy gain that occurs when small nuclei combine to form larger nuclei. Of course, such a combination can only occur at extremely high temperatures since the nuclear forces binding protons and neutrons must be overcome for the fusion reaction to occur.

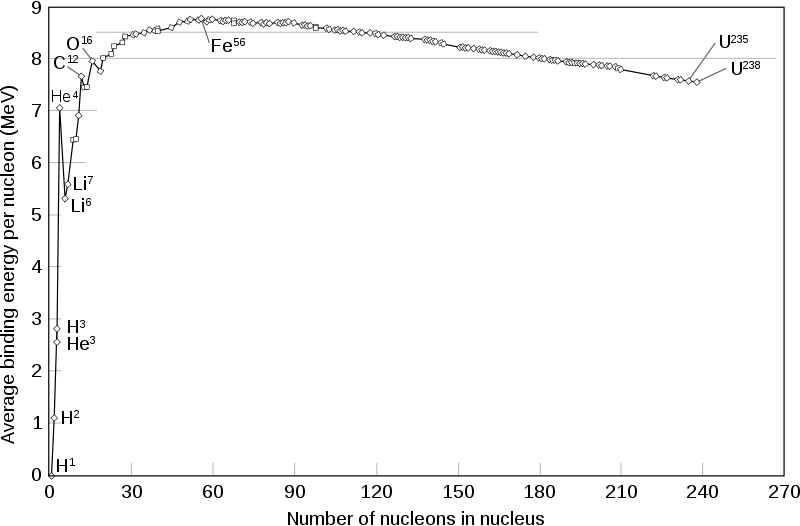

The nuclear binding energy curve. Up to Iron-56, the formation of fused nuclei releases energy. Notice that lighter elements release more energy, explaining why lighter elements are often used for fusion (source).

In nature, fusion powers stars. Leveraging fusion here on earth has been a longstanding dream for scientists and governmental planners. However, maintaining the extremely high temperatures needed for sustainable fusion reactions has proven extraordinarily difficult. One of the leading approaches for achieving fusion, the tokamak, maintains high temperature plasma in a donut ring as the diagram below shows. The ITER project is working on building the world’s largest tokamak reactor (see diagram below) and aims to produce more power than it consumes upon full operation.

A cutaway rendering of the planned International Thermonuclear Experimental Reactor (ITER). Construction of ITER began in 2013 and full operation is scheduled to begin in 2035. Upon completion, ITER will produce 500 megawatts of power (source).

Fusion science has improved steadily over the last several decades, with today’s fusion reactors considerably closer to sustainable power production than reactors from a few decades ago (see diagram below). ITER is currently the leading approach to build a functional fusion reactor, but as a large multinational consortium, ITER faces complex political and operational issues that have slowed construction (source). ITER does not expect to operate fully till 2035. The slow pace of planned development has encouraged a number of fusion startups to attempt innovative faster and cheaper approaches to achieving practical fusion (source).

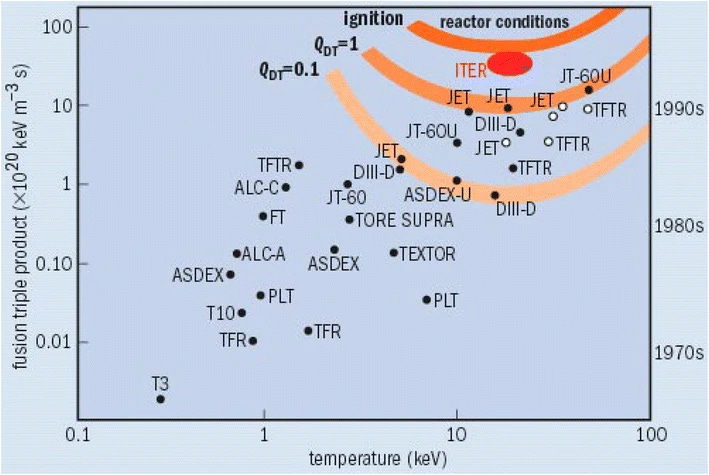

The fusion triple product (also called the Lawson criterion at times), is a measure of the energy produced by a fusion reactor compared with the energy being put in. Q is the symbol used for the fusion energy gain product which is another related measure. Curves for different Q-values are plotted on the chart above. Q=1 is the break-even curve at which more energy is produced than put in. Ignition is the condition at which a reactor can be used to produce power. The large ITER project aims to succeed in producing more power than goes in but additional research will be needed to produce a viable fusion power plant (source).

Computational Plasma Models

Plasma modeling can be done at several levels of theory that model the underlying structure of the plasma with increasing fidelity. The diagrams below (sourced from this excellent blog post) explain various levels of computational modeling of plasmas. The simplest approach models plasma as an electrically charged ideal gas. Magnetohydrodynamics adds bulk fluid interactions to the model, and Two Fluid Models model ions and electrons separately.

A simple classical approach for modeling plasma models it as an electrostatically charged ideal gas (source).

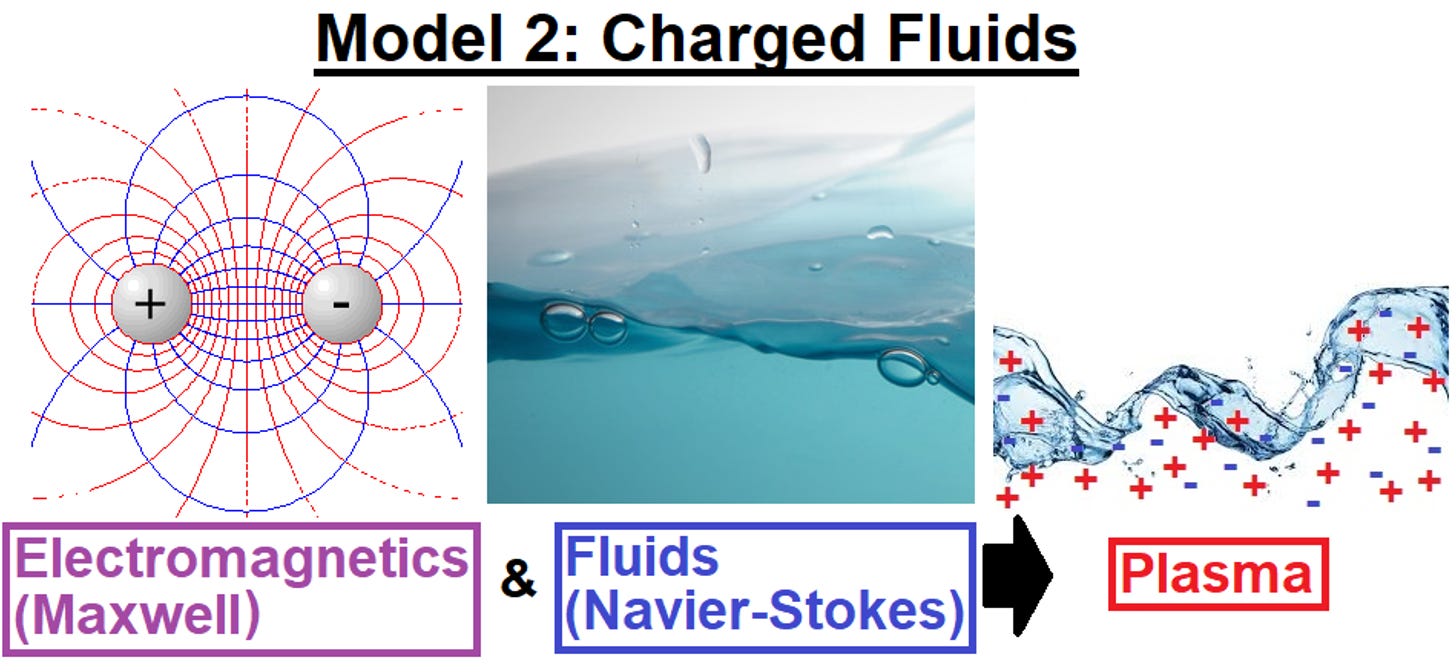

The magnetohydrodynamic (MHD) approach models plasma as an electrically charged fluid. MHD models produce equations which are combinations of Maxwell’s equations with the Navier-Stokes equations (source).

The two fluid approach extends the magnetohydrodynamic approach by modeling ions and electrons as separate charged fluids (source).

The three approaches above have the strong benefit of simplicity, but struggle to model more sophisticated interactions. The Particle In Cell (PIC) method breaks up the plasma into a lattice of small cells and models the plasma through “super particles”, which represent some number of actual particles (see diagram below). PIC methods are considerably more computationally expensive than the earlier approaches we saw since they model more fine-grained interactions. Blob In Cell (BIC) models take a somewhat more sophisticated approach by modeling each cell through an empirical charge distribution that is iteratively updated.

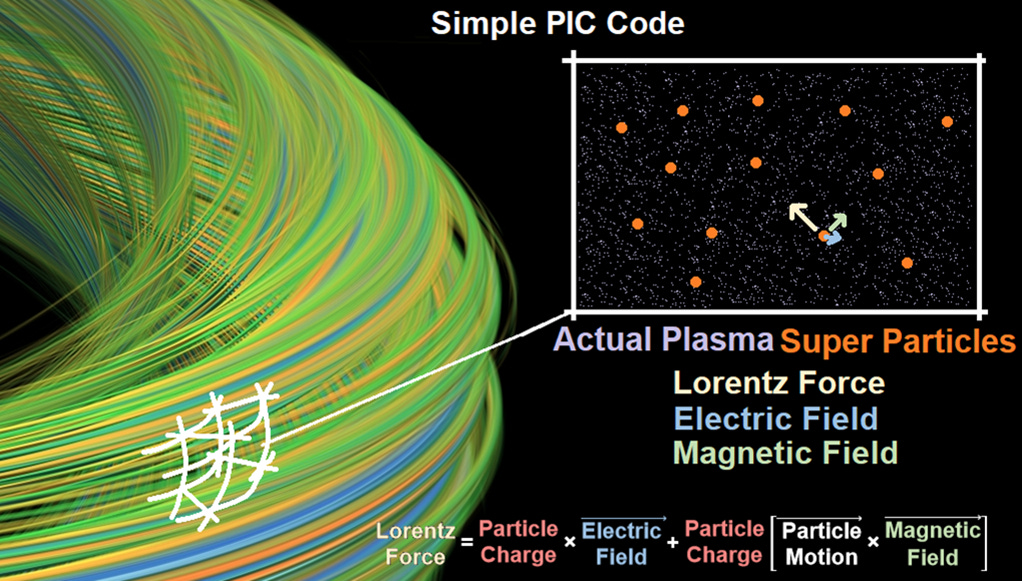

The particle in cell (PIC) method combines two ideas. First, the plasma volume in the reactor is broken up into small cells (the plasma volume is the green curve above with the cell demarcated in white). The plasma is modeled with “super particles,” each of which represents say 1000 real ions. These super particles are acted upon by the electric and magnetic fields of all the surrounding super particles and the entire system is evolved forward in time according to Newton’s Laws. Unlike the earlier methods, (PIC) doesn’t model the fluid as a continuum. (source).

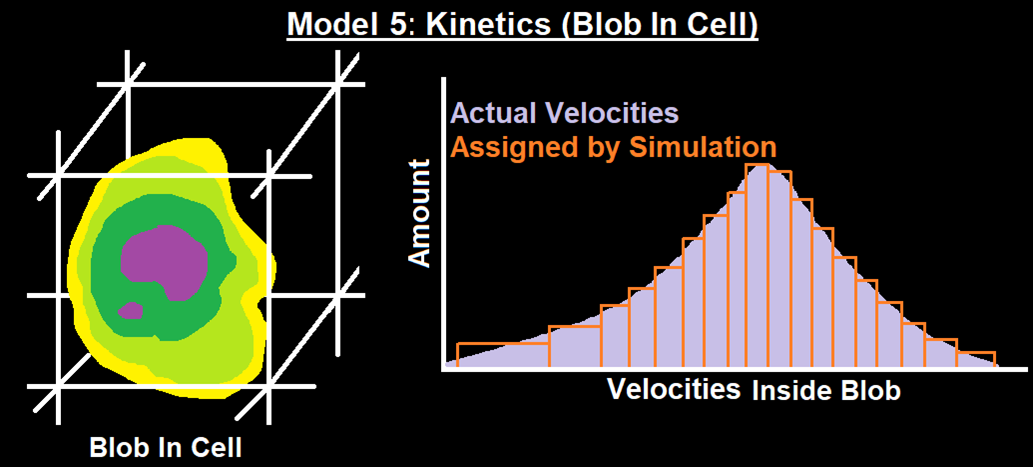

Blob-in-cell approaches model plasma through “blobs” within various cells. An empirical density and velocity distribution is tracked within each blob by the simulation (source).

The distribution within each blob is updated iteratively at each step of the simulation according the the magnetic and electric fields produced by the current distribution of blobs (source).

Discussion

One of the most surprising things I learned writing today’s post is that most computational models of fusion reactors operate purely within the realm of classical physics. In actuality, fusion is a profoundly quantum phenomenon that depends on high temperatures being used to break nuclear bonds. However, computational modeling of nuclear forces is still in its infancy; lattice chromodynamics has only very recently been used to study the nuclear interactions that occur in fusion reactions (source). The inability of modern simulation techniques to capture the true physics contributes to the challenge of building fusion reactors. New techniques based on scientific machine learning and quantum computers could play a role in accelerating fusion modeling (source).
