Testing Manufactured Wafers
In previous issues we have introduced the steps of semiconductor manufacturing such as front-end-of-line and back-end-of-line manufacturing, but we haven’t yet discussed how manufactured wafers are tested for correctness. Modern chips are extremely complicated, with billions of nanoscale structures. Manual testing can’t hope to catch all the possible errors that can arise in the manufacturing process. Manufacturers have developed sophisticated strategies to catch potential manufacturing errors. Wafer probers, like the one in the image below, can help perform automated testing of electrical contacts using tiny probes which are pressed against the wafer. Note that a large enough wafer by necessity will have some failing circuits. Typically, failing circuits are noted electronically in a file called a “wafermap,” which is used later in the process to package only functional circuits.
Metrology

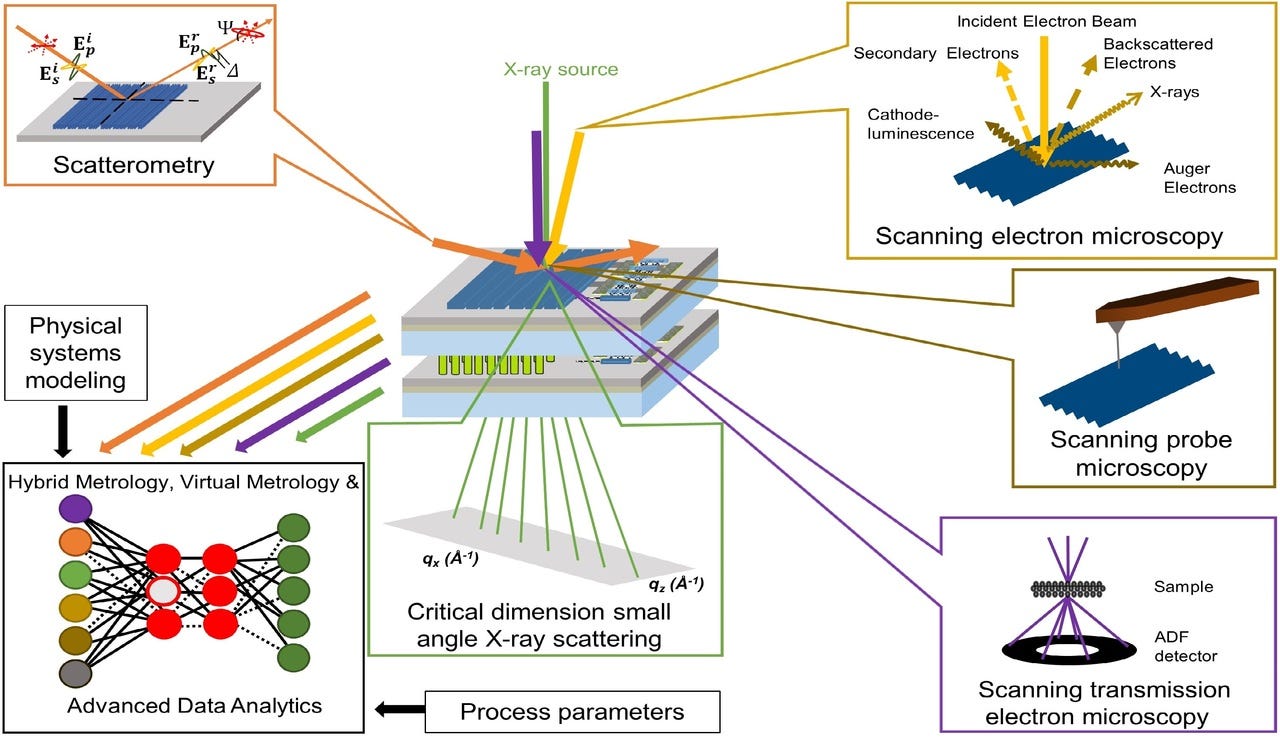

Metrology broadly uses scanning techniques to look at the actual nanostructures fabricated onto a chip source. These techniques, which include things like atomic force microscopy or scanning electron microscopes can be used to study the structures on wafers at the nanoscale. Techniques such as scatterometry can be used to inspect the surface by studying how it scatters light. The diagram below illustrates a number of different metrology techniques that can be used to understand a chip.
Deep Learning Techniques for Quality Control
The diagram above hints at virtual metrology techniques which can be used to characterize the wafer. Such methods use raw signals from manufacturing machines to predict wafer quality without any experimental metrology experiments. Virtual metrology can also be used for quality control after etching steps. ASML has similarly developed deep learning methods for photolithography overlay to help alignment between lithography steps.
Deep learning methods can be paired with microscopy to make metrology techniques more capable. One challenge for researchers in the field is that datasets are hard to come by; increased access to open datasets will enable further advances in virtual metrology. At present, deep learning techniques in foundries are primarily limited to quality control (source). Future work could try using techniques like reinforcement learning for full foundry management. Foundry managers should partner more closely with academic institutions and startups to explore these newer possibilities.
